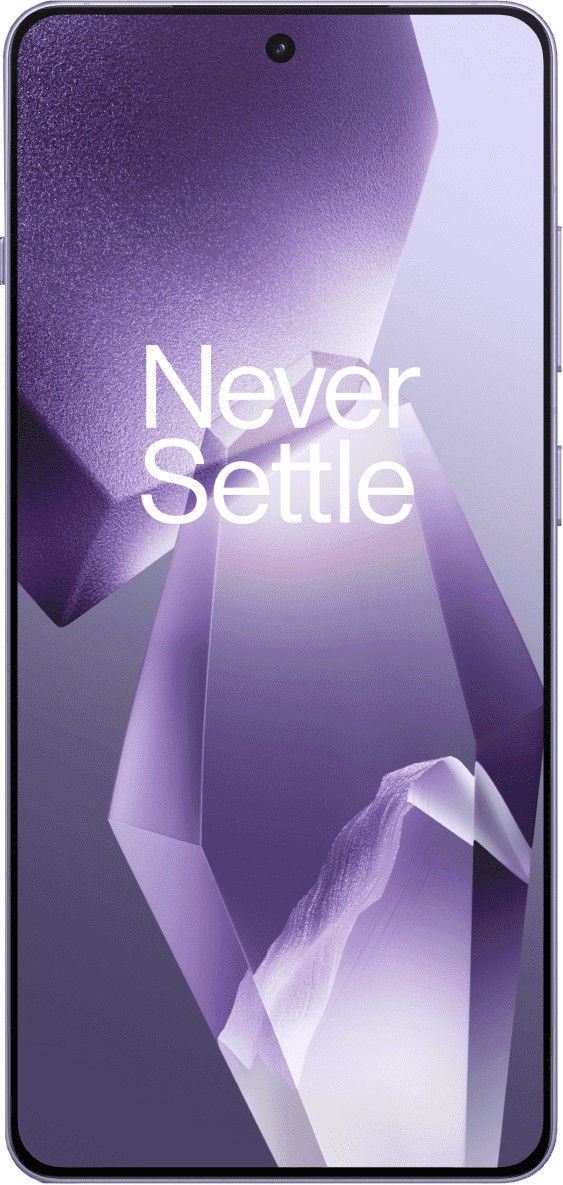

OnePlus Ace 5 Pro

Market Status: Upcoming

Key Specifications

Screen Size

6.78 inches (17.22 cms)

RAM + Storage

12 GB + 256 GB

Processor

Snapdragon 8 Elite Octa core

Screen Resolution

1264 x 2780 pixels

Operating System

Android v15

Rear Camera

50+8+2 MP

Battery

6100 mAh | 100W Fast Charging

View Full Specs

Status

Upcoming

Expected Price

Yet to be confirmed

Expected Launch Date

Yet to be confirmed

OnePlus Ace 5 Pro Specifications

Key Specs General Performance Display Design & Body Main Camera Front Camera Battery Storage Network & Connectivity Multimedia Sensor

Key Specs

RAM 12 GB

Processor Snapdragon 8 Elite Octa core

Rear Camera 50+8+2 MP

Front Camera 16 MP

Battery 6100 mAh | 100W Fast Charging

Display 6.78″ (17.22 cm) 120Hz LTPO AMOLED

General

Operating System Android v15

Custom UI ColorOS

Performance

Chipset Qualcomm Snapdragon 8 Elite

CPU 4.32GHz, Dual core, Oryon 3.53GHz, Hexa Core, Oryon

No of Cores 8 (Octa Core)

Architecture 64-bit

Fabrication 3 nm

Graphics Adreno 830

RAM 12 GB

RAM Type LPDDR5X

Display

Screen Size 6.78 inches (17.22 cms)

Screen Resolution 1264 x 2780 pixels

Bezel-less display Yes, with Punch-hole

Pixel Density 450 ppi

Display Type LTPO AMOLED, Always-On display, Blue light filter, Dolby Vision, HDR 10+, HDR Vivid, Split screen

Brightness 800 nits Nits

Refresh Rate 120 Hz

Screen Protection Yes

Touch Screen Yes, Capacitive, Multi-touch

Color Reproduction 1B Colors

Screen to Body % 90.57 %

Design & Body

Height 161.72 mm

Width 75.77 mm

Thickness 0.32 inches (8.14 mm)

Weight 203 grams

Build Material Crystal Shield Glass back panel

Colours White Moon Porcelain Ceramic, Starry Purple, Submarine Black

Waterproof Yes, Splash proof, IP65

Ruggedness Dust proof, Water proof

Screen Unlock Fingerprint, Face unlock

Main Camera

Camera Setup Triple

Resolution 50 MP resolutionWide Angle lensf/1.8 aperture24 mm focal length 1.56" sensor size1µm pixel size

Camera Secondary 8 MP resolutionUltra-Wide Angle lensf/2.2 aperture16 mm focal length4.0" sensor size1.12µm pixel size

Camera Tertiary 2 MP resolutionMacro lensf/2.4 aperture22 mm focal length

Sensor Exmor-RS CMOS Sensor

Optical Image Stabilisation Yes

Flash LED Rear flashScreen Front flash

Shooting Modes Continuous Shooting High Dynamic Range mode (HDR) Macro Mode

Camera Features Auto Flash Auto Focus Face detection Touch to focus

Video Recording 3840x2160 @ 60 fps1920x1080 @ 240 fps1280x720 @ 480 fps

Video Recording Features Dual Video Recording Slo-motion

Digital Zoom 20x

Front Camera

Camera Setup Single

Resolution 16 MP resolutionWide Angle lensf/2.4 aperture24 mm focal length3" sensor size1µm pixel size

Video Recording 1920x1080 @ 30 fps1280x720 @ 30 fps

Battery

Capacity 6100 mAh

Type Silicon Carbon

User Replaceable No

Fast Charging Yes, Super Flash, 100W

Quick Charging 55 % in 15 minutes (claimed by Brand)

USB Type-C Yes

Storage

Internal Memory 256 GB

Memory Type UFS 4.0

Expandable Memory No

USB OTG Support Yes

Network & Connectivity

SIM Slot(s) Dual SIM SIM1: Nano SIM2: Nano

Network Support 2G, 3G, 4G, 5G

VoLTE Yes

SIM 1 5G:FDD N1 / N3 / N5 / N8 / N28 ; TDD N38 / N40 / N41 / N48 / N66 / N77 / N78 / N79 4G:TD-LTE 2600(band 38) / 2300(band 40) / 2500(band 41) / 2100(band 34) / 1900(band 39) / 3500(band 42) ; FD-LTE 2100(band 1) / 1800(band 3) / 900(band 8) / 700(band 28) / 1700(band 4) / 850(band 5) / 850(band 18) / 850(band 19) / 850(band 26)

SIM 2 5G:FDD N1 / N3 / N5 / N8 / N28 ; TDD N38 / N40 / N41 / N48 / N66 / N77 / N78 / N79 4G:TD-LTE 2600(band 38) / 2300(band 40) / 2500(band 41) / 2100(band 34) / 1900(band 39) / 3500(band 42) ; FD-LTE 2100(band 1) / 1800(band 3) / 2600(band 7) / 900(band 8) / 700(band 28) / 1700(band 4) / 850(band 5) / 850(band 18) / 850(band 19) / 850(band 26)

Wi-Fi Yes, with a/ac/ax/ax 6GHz/b/be/g/n/n 5GHz, MIMO

Wi-Fi Features Mobile Hotspot

Bluetooth Bluetooth v5.4

GPS Yes with A-GPS, Glonass

NFC Yes

USB Connectivity USB 2.0, USB Type-C, Mass storage device, USB charging, USB On-The-Go

Infrared Yes

Multimedia

Loudspeaker Yes

Audio Jack Yes, USB Type-C

Video Player Yes, Video Formats: MP4

Sensor

Fingerprint Sensor Yes, On-screen

Face Unlock Yes

Other Sensors Light sensor, Proximity sensor, Accelerometer, Compass, Gyroscope
